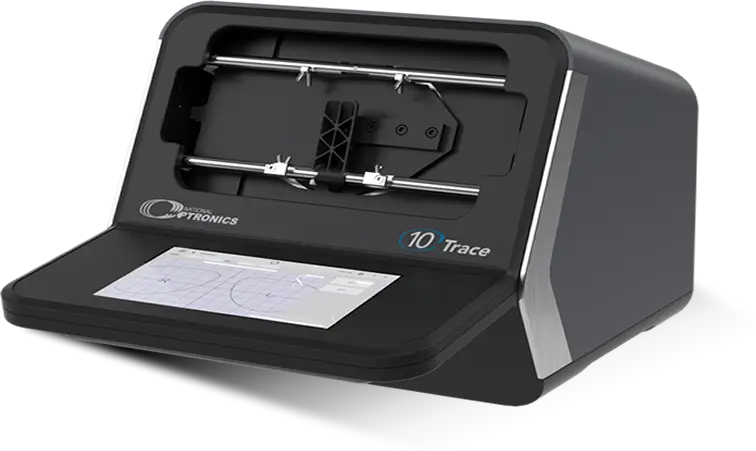

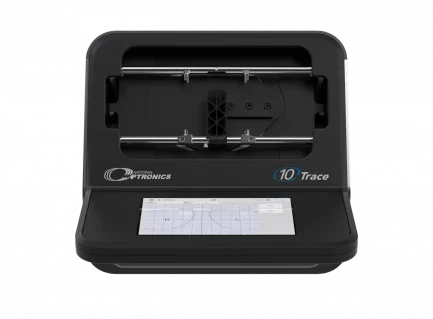

AUTOMATIC 3D FRAME AND LENS TRACER
The new 10Trace is built to handle a wide variety of frame styles and curves—including wraps, small frames, and full 3D tracing. Its durable industrial design ensures long-lasting performance and ease of use. With the 10Trace rimless shape modifier and editing tools, you can create custom shapes that meet your customers’ exact needs and expectations.
Highlighted Features and Performance Benefits

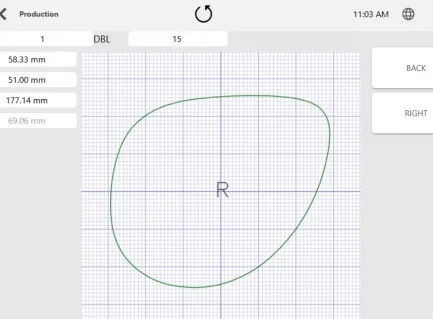

Precise Image
- The 1:1 ratio, distortion-free, displays the frame at actual eye size.
Versatile Performance for Any Tracing Environment

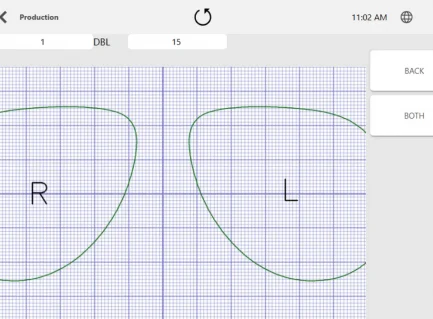

- Engineered to handle a full range of frame styles and curves—including wraps and small frames—making it ideal for all tracing applications. The accurate dual eye tracing and DBL (Distance Between Lenses) measurement have a 2,000 point resolution encoder.

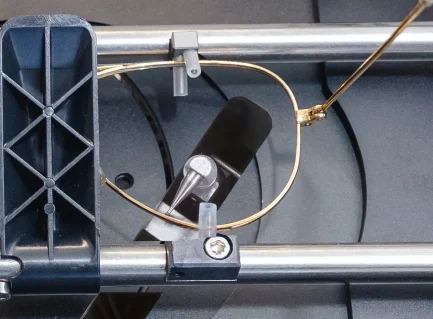

Upright Loading Orientation
- An upright loading design helps maintain lens shape and prevents distortion. It also reduces debris buildup, protecting sensitive electrical and mechanical components for long-term reliability.
Remote Frame Tracing Feature
- Captures the exact frame shape and sends the data directly to a remote lens lab—no need to ship the frames. Its compact, industrial-grade design makes it easy to transport and perfect for use in remote or mobile settings.
Cloud-Based Software
Provides secure, real-time access to lens trace data from anywhere with an internet connection.
Remote Diagnostics
An easy-to-use remote diagnostics system provides fastest response times for immediate technical support and current software updates.
Assembled in the USA
Each machine is assembled domestically to uphold the highest standards of quality and craftsmanship.
Working Range
- 18mm – 75mm tracing
Communications
- OMA / VCA compatible
- Stand alone
Additional Features
- Stores over 100 jobs
- Comes complete with accessory kit, including calibration device, pattern/lens holder
- One-year parts and labor warranty

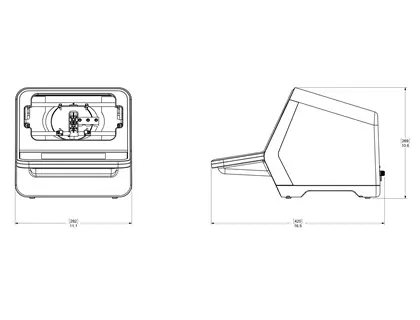

Facilities
- Power: 100-240 VAC, 50-60Hz
- Height: 10.6″ (26.9 cm)
- Depth: 16.5″ (41.9 cm)
- Width: 11.1″ (28.2 cm)
- Weight: 19 Ibs (8.62 kg)
Options
- Barcode reader
