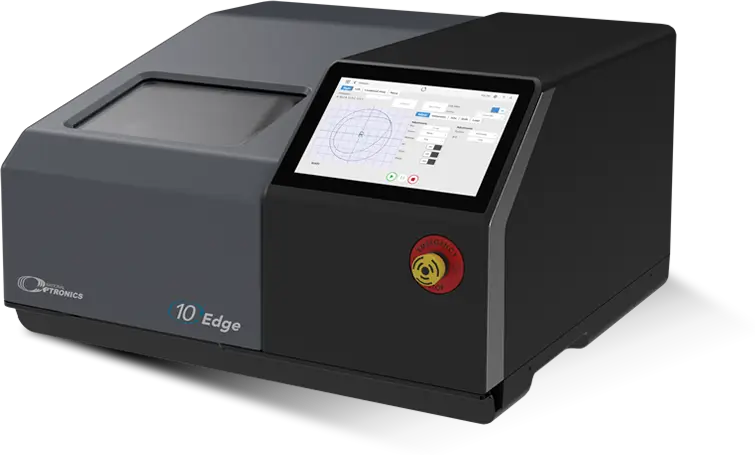

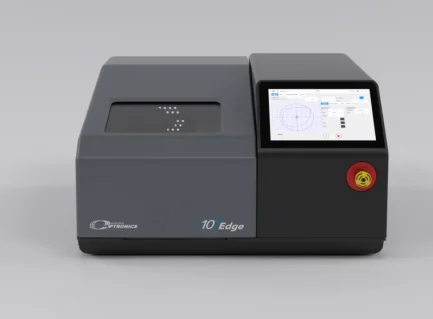

3D EDGING AND FINISHING LENS EDGER

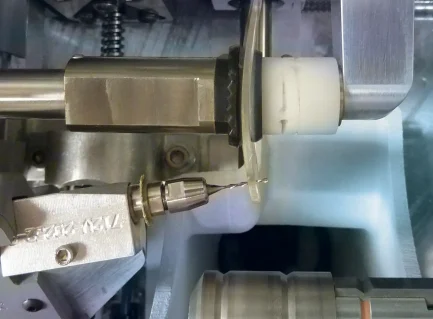

The 10Edge is a high-performance tabletop edger that drills and grooves in a single seamless process. Its advanced cutting system includes everything needed for flawless results: roughing, finishing, polishing, grooving, and safety beveling. With an intuitive color touchscreen and fast Ethernet connection, it offers even greater control and connectivity, streamlining your workflow.
Whether you’re running a small shop or a large lab, the 10Edge delivers reliable performance backed by the industry’s most trusted service and support team.
Highlighted Features and Performance Benefits
Flexibility to Process Most Bevel Types

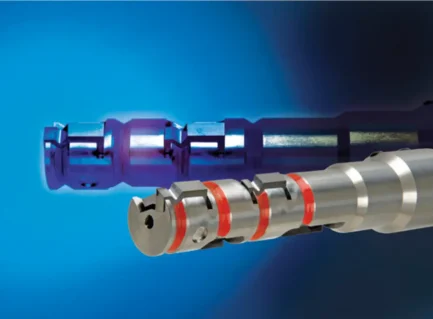

- Add versatility to your edging with the optional multi-fluted cutter—perfect for customizing bevels to suit specialty frame designs and expand your service offerings.
Variable Blocking Options
- Compatible with all major blocking styles, the system easily adapts to your current workflow—giving you the flexibility to align with your preferred blocking method without compromise.

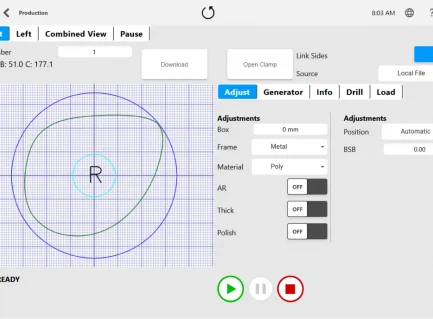

Intuitive Touchscreen Interface
- The touchscreen interface makes operation simple and straightforward—even for first-time users. Just enter the required data and you’re ready to go.
Space-Saving Tabletop Design
- The outer design allows the blocker to securely rest on the edger, helping you stay organized and maximize workspace efficiency.
Green Operation
Environmentally friendly dry edging saves water and makes lens debris clean-up easy.
Remote Diagnostics
An easy-to-use remote diagnostics system provides fastest response times for immediate technical support and current software updates.
Assembled in the USA
Each machine is assembled domestically to uphold the highest standards of quality and craftsmanship.
Working Range
- Maximum lens blank size: 90mm (effective diameter)
- Minimum finishing B size with (standard) half eye clamping assembly:18mm rimless; 20mm bevel
Communications
- OMA / VCA compatible
- Stand alone
Additional Features
- Comes complete with vacuum system and accessory kit
- One-year parts and labor warranty

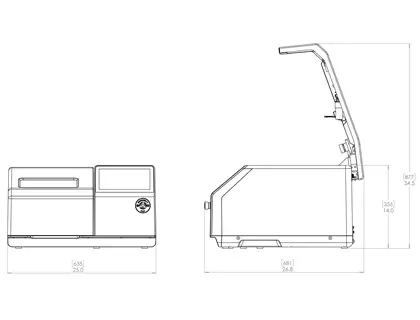

Facilities
- Power: 115 VAC 60Hz, 1500 W dedicated circuit
- Height: 14″ (35.6 cm)
- Depth: 26.8″ (68 cm)
- Width: 25″ (63.5 cm)
- Weight: 145 Ibs (65.77 kg)
Options
- Multi-fluted cutter
- Specialty cutters
- Barcode reader
- PCD cutter
