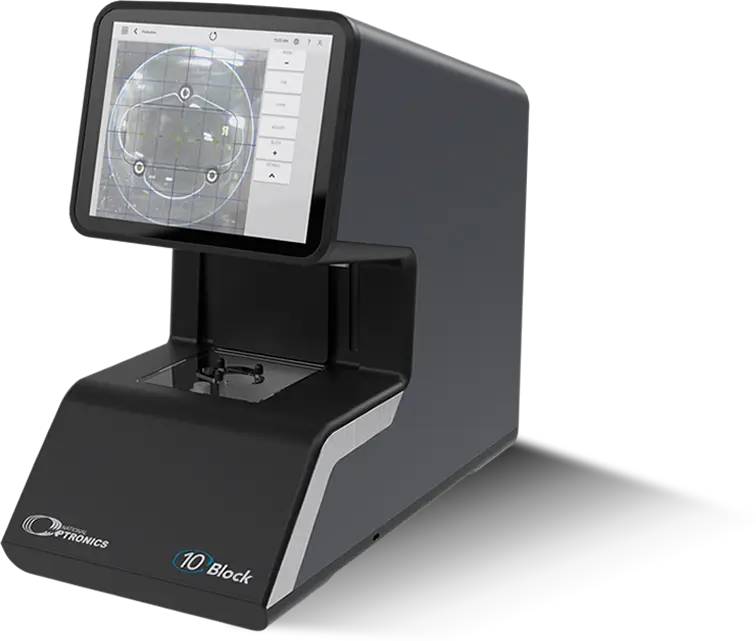

SEMI-AUTOMATIC LENS BLOCKER
The new 10Block industrial high-speed blocker delivers precise lens positioning for optimal edging results, minimizing parallax and distortion. The intuitive touchscreen was designed for easier, straightforward operation.
Designed with minimal moving parts, this semi-automatic system ensures smooth, continuous operation with reduced downtime.
Highlighted Features and Performance Benefits
Precision Imaging
- High-resolution digital imaging delivers sharp, detailed views of lens watermarks and blocking positions for precise, confident alignment.
Ergonomic Design
- Large, heads-up display gives the operator a comfortable position. The foot switch initiates the blocking process for hands-free blocking.
Multiple Block Configurations
- The blocker can be configured to any metal or plastic block design. Custom blocking options include geometric center, optical center or manual placement.
Parallax and Distortion-Free Blocking
- By projecting the front surface of the lens, accidental refraction is minimized. Blocking with the front surface facing down helps prevent lens damage and eliminates errors caused by lens imbalance.
Ethernet Transmission
Fast Ethernet transmission added option for seamless communication and efficient software updates.
Remote Diagnostics
An easy-to-use remote diagnostics system provides fastest response times for immediate technical support and current software updates.
Assembled in the USA
Each machine is assembled domestically to uphold the highest standards of quality and craftsmanship.
Communications
- OMA / VCA compatible
- Stand alone

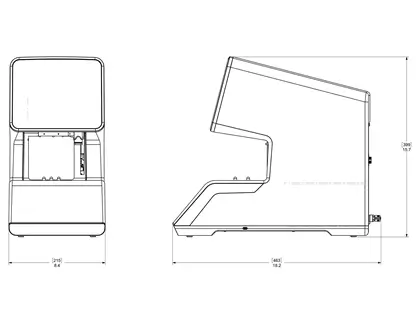

Facilities
- Power: 100-240 VAC, 50-60Hz
- Height: 15.7″ (40 cm)
- Depth: 18.2″ (46.2 cm)
- Width: 8.4″ (21.3 cm)
- Weight: 18 lbs (8.16 kg)
Additional Features
- Store up to 200 jobs
- Split screen to easily view lens layout and job data
- One-year parts and labor warranty
Options
- Barcode scanner
- Multiple block configuration
